| Automatic Two Axis Water Slot Milling Machine |
| |
|
| Product detail information: |
|

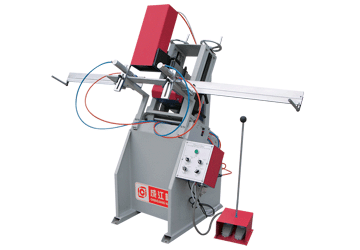

CLXCA-60 Automatic Two Axis Water Slot Milling Machine
Equipment features
● Milling all kinds of water slots and air pressure balance grooves.
● The same milling heads.
● Special feeding system, high milling quality, need no special maintenance.
● Water slot milling length adjustable within 60mm.
Main technical parameter
●Air pressure 0.5~0.8Mpa
●Air consumption 30L/min
●Power supply 220V 50Hz
●Input power 1.14kW
●Motor speed 25000r/min
●Cutter diameter φ5 φ8
●Slot length 0~100mm
●Contour dimension 1200×1200×1800mm
●Weight 300kg
|
|
|
|
|
|
|
|
|
