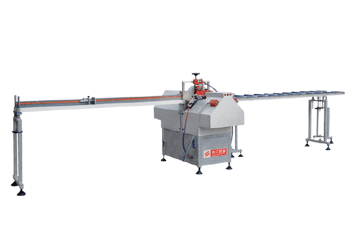

CSJVA-55 Mullion Cutting Saw for Plastic & Aluminum Profile

Equipment features
● Used for mullion cutting.
● One time two V shape cutting.
● Horizontal structure for high cutting precision.
● Patent technology to prevent collapse during cutting procedure.
 Main technical parameter
● Power supply           380V 50Hz
● Input power              3.0Kw
● Air pressure             0.5~0.8Mpa
● Air consumption          15L/min
● Spindle rotary speed     2800r/min
●  Cutting length            300~2100mm
● Cutting width             120mm
● Cutting height            110mm
● Contour dimension        7500×1720×1390mm
● Weight                        300kg
