| Profile Tenon Milling Machine |
| |
|
| Product detail information: |
|

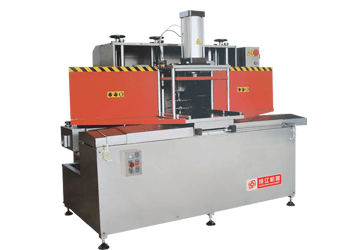

CLXSJ6-250 Profile Tenon Milling Machine
Equipment features
● Used for processing various profile surface and step surface etc.
● One time feeding can process the required mortise dimension of
the profile surface.
● Milling any angle between 0° and 180° is available.
● The six combined cutters can assemble any size according to the
requirement of buyer.
● Feeding system adopts motor drag, uniform speed feeding, accurate
processing and high quality.
Main technical parameter
●Power supply 380V 50Hz
●Cutting motor power 13.2kw
●Motor rotary speed 2800r/min
●Feeding motor 0.37kw
●Air pressure 0.5~0.8Mpa
●Main shaft diameter φ32mm
●Feeding space 1570mm
●Worktable measurement 480×480 mm
●Quantity of milling cutters 横向80mm 纵向280mm
●Contour dimension 2070×1130×1820mm
●Weight 1500kg
|
|
|
|
|
|
|
|
|
