| Corner Combining Machine |
| |
|
| Product detail information: |
|

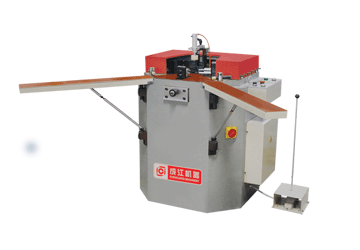

CLMB-120 Corner Combining Machine
Equipment features
● The frame is specially jointed by steel with high quality and then does special process.
● Adopt new mechanical linkage device, realized complete synchronous corner combining.
● Synchro Feeding structure make the adjustment very easy.
● It is collocate single cutter of many points crimping cutter ensure reliably crimping heat
insulation aluminum windows and doors.
Main technical parameter
● Power supply 380V 50Hz
● Air pressure 0.5~0.8Mpa
● Air consumption 2L/min
● Pressure of oil pump 16Mpa
● Corner move range 85mm
● Contour dimension 1850×1680×1210mm
● Weight 300Kg
|
|
|
|
|
|
|
|
|
